Armory 20/20 Visibility Networks can be configured to be simple, low cost local application that provides most critical single armory functions. It can also be configured to manage many 10's to 100's of sites with 100,000's of managed weapons using secure and robust industry standard Oracle systems.

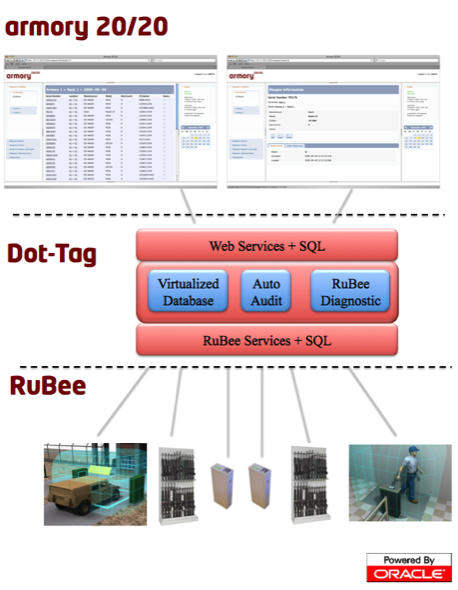

The 20/20 Visibility Platform, has three layers:



◆ RuBee Visibility Networks - RuBee tags, Smart Racks, GateGuard, Muster Stations.

◆ Dot-Tag Visibility Engine - middleware, that manages all RuBee Appliances and takes responsibility for all real-time events over a conventional eithernet network.

◆ 20/20 Armory Application - application layer, designed for a specific, focused visibility application, however based on parts and components that are necessary for most visibility networks.


Stacks Image 3730
Stacks Image 3734
The visibility hardware network based on IEEE 1902.1 wireless and asset local network. Includes all RuBee tags, RuBee Routers and pRaps and RuBee Appliances. Manages and controls all RuBee visibility tags within a local RuBee network. Protocols and business rules are provided in firmware contained in the RuBee Tags and the RuBee Routers that read and write to the RuBee Tags.


Stacks Image 3739
The visibility server engine. Manages networks of RuBee Smart Shelves, RuBee Routers Muster Stations and pRaps. Manages and controls all RuBee appliances in a local or global TCP/IP network. Produces all DOD 5015.2 audit trails. Based on embedded Oracle 11G database and Weblogic tools. Dot-Tag provides a Service Oriented environment for any 20/20 web application.


Stacks Image 3744
The visibility application manager. A configurable visibility packaged and application package for near any asset including things, animals and people. Turns inventory control, management, reporting problems into an integrated user friendly visibility application in a few days. Easy to customize applications.



Stacks Image 3748
Stacks Image 3752

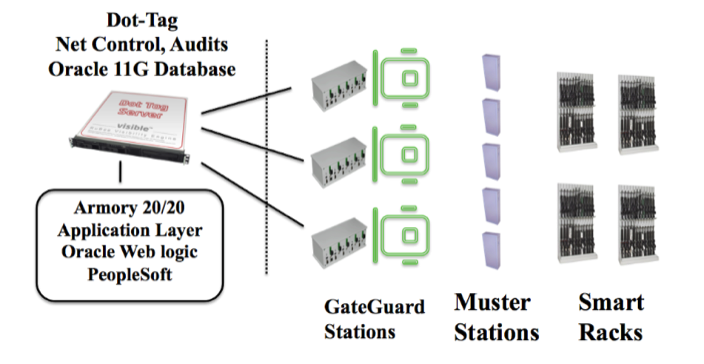

Dot-Tag manages any RuBee visibility network. The Dot-Tag system identifies the appliance type, records and tracks all events and visibility functions, and provides administration services, as well as diagnostics for:

  • Exit/Entry Appliances - GateGuard and Muster Stations
  • Check In/Out Appliances - pRaps and Issuance Stations
  • Visibility Appliances - Smart Racks and Smart Shelves

Dot-Tag manages all real time scheduling, provides audit trails of all reportable events and all RuBee network and tag diagnostics. Dot-Tag virtualizes all events in a visibility database (Oracle 11g) with exportable events sent to an application layer as they as they occur. Application layer has access to the database through SQL and receives event messages as they occur.



Stacks Image 3761
Stacks Image 3765
Stacks Image 3769




Stacks Image 3776

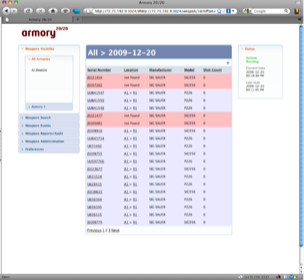

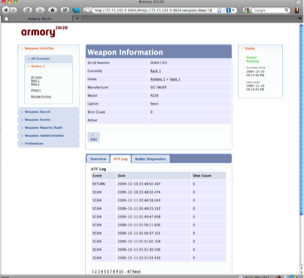

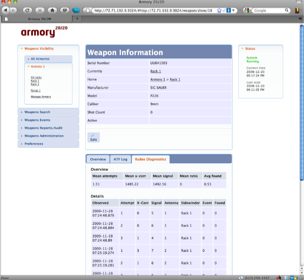

The armory 20/20 application provides simple on-line viewable lists, data, and status with ability to drill down and see all transactions for a weapon, for life of weapon, as well as full 5015.2 audit trails of verifiable signals and data. The audit trail data may be exported into a format for analysis in several well known data miners. The audit trails provide high level tag and network diagnostics. Full custom reports may be published at the the end of the day, emailed as PDF's. All exit entry data is data logged and again custom reports are provided.
